Control Gripper of Fanuc 710 with Fanuc R-30iB Plus

Q&A
1

Hello,
using MechViz in Master communication mode. DeepL Camera. Camera and Robot Movements work well.
Now want to control Gripper (Open/Close). Tried all 64 DO that MechViz shows. Nothing is switching any Port in End of Arm Tooling connector EE. Measured all wit multimeter. Don’t know how to get signal to the gripper. We can switch Digital Outputs which can be seen on the Touch Pendant. But we need a physical 24V pin to change.

Any suggestion how to do?

Otherwise, without using gripper, the system cannot work.

Thank you

2

suggestion 1, use the standard interface communication mode instead of the master.
suggestion 2, add a physical 24V pin to switch Digital Outputs to Robot Outputs. And also the Inputs
Signals.

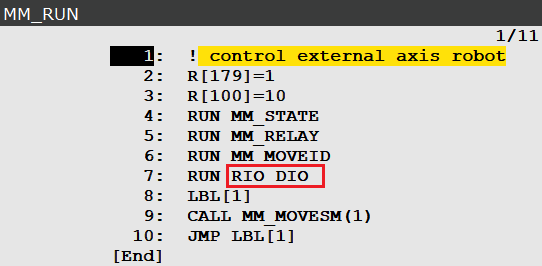

suggestion 3, develop a program through the karel language to realize the real-time mapping of DIO and RIO signals, and invoke it through the RUN command at the location MM_RUN the icon of the master program.
